Marinas


We welcome both:

Floats

Floatation modules can stand temperatures in range from -60°C to +60°C and are also resistant to sudden temperature fluctuations. There is no need to deassemble or remove construction in winter period.

Our foam filling technology:


Floating Products



Private wood docks (Pontoon float 1000L)

Construction of private swimming dock or a mooring pier for small boats can be done based on our floats.

TypeDimensions a/b/h, mmVolume, l Price
Pontoon float 1000L1900 / 1150 / 5101000ask for price


Construction of private swimming dock or a mooring pier for small boats can be done based on our floats. We can supply turnkey swimming docks of different dimensions.

TypeDimensions a/b/h, mmVolume, l Price
Pontoon float 135L H2501130 / 640 / 250134ask for price
Pontoon float 230L H4501130 / 640 / 450220ask for price
Pontoon float 280L H5701130 / 640 / 570285ask for price
Pontoon float 330L H6501130 / 640 / 645330ask for price

Steel platform+decking

Wooden platform





Modular floating docks

Floating docks are light weight floating constructions, produced from high quality polyethylene. Permanent and temporary floating platforms of any shape can be assembled with our floatation modules.


Floating docks modules can stand temperatures in range from -60°C to +60°C and are also resistant to sudden temperature fluctuations. There is no need to deassemble or remove construction in winter period.

TypeDimensions a/b/h, mmWeight, kg Max Load, kgPrice
Modular pontoon float 3x1,53000 / 1500 / 3301101500ask for price


Connection

Floats are connected with each other by means of chains (item №9). Inside the dock there are pipes (grey color on right picture). Chains go inside the pipes, end of chain is fixed with steel disc (item №7) and carabine (item №8).






Alternative option: Wood connection

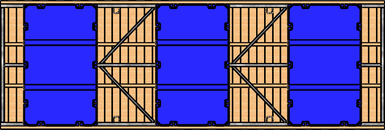

Connection by chains works good, when you put modular pontoons one after another. However, when you want to have gaps between modular pontoons, you need wood frame. Wood frame can be connected by chains (left picture) or can simply embrace modular pontoon (right picture).



If pontoon should be covered with wood decking, it can be attached to the wood frame.




Advantages

Custom shape possible

Clutches to avoid shaking\rolling




Anchoring

Floating dock can be anchored with help of 2 anchors to the seabed. The anchors are attached with chains to the end of connection chains (red color on left picture).


On the land side, Modular pontoon float 3x1,5 can be anchored exactly in the same way as on the water side. Anchors will be digged into the shore ground.

Gangway, Ladder, Accessories

All accessories are connected by inserting vertical steel pipe into pre welded PE pipe:



Welding of PE pipes for mounting is custom option, hence should be agreed upon order.

Gangway

Bench

Ladder



Rail

Anchor




Usage

Our floating docks are suitable for:

  • private docks and piers for swimming spots
  • mooring piers for yachts, catamarans and boats
  • slips for small boats
  • temporary bridges and crossings (for pounds and rivers with moderate current)
  • industrial platforms (for example applied for heavy slurry pipeline 300-400)
  • custom platforms for houses or saunas

Floating docks in packages

It takes 5 minutes to order and 40 minutes to assemble.



3x3 PackageT-packageT-package XL
TypeDimensions a/b/h, mmMax Load, kgPrice
3x3 Package3000 / 3000 / 330ask for price
T - package9000 / 3000 / 330ask for price
T - package XL15000 / 3000 / 330ask for price


Jet ski port

Easy parking — special shape allows easy jet ski drive in and drive out.


Usability and durability — jet ski port is produced from high quality PE, resistant to UV and cold temperatures. It does not require any additional maintenance.

TypeDimensions a/b/h, mmMax Load, kgPrice
Jet ski float3600 / 1500 / 410800ask for price







Characteristics


  • 3600x1500x410 mm (consists of 2 parts, welded together at factory by extrusion welding technology)
    • 2625x1500x410
    • 975x1500x330
  • 4 pc. rollers

Сonnection to other docks:

We ship jet ski port with inserted chains by default, but when agreed, will be substituted with rigid connection. All possible connections are listed below. Jet ski can be connected with long side or with short side. To allow connection there are pre-welded PE pipes, similarly to Modular pontoon float 3x1,5. 2 pipes on short side and 1 pipe on a long side.



1. Connection to another Jer ski port by chains (long side)

If you connect Jet ski with long side, only 1 chain can be used, since there is only 1 pipe. Back part is not fixed in this scenario to allow Jet ski port to be flexible (to change from loaded to unloaded state).

Connection method same as on UHP site. But chain should be put through jet ski port first and than go through modular pontoon 1500.

2. Connection to Modular Pontoon 1500 by chains (short side or long side)

Connection with long side should be used only if connection with short side is not possible. Otherwise same approach as in method above.


3. Loose connection by ropes (short or long side)

Connection with long side should be used only if connection with short side is not possible. If connecting with long side, make sure that there are some fenders to avoid Jet ski port getting scratches from hitting neighbor structures. All Jet Ski Ports come as standard with inserted chains. Chains end with carabines.

2 Front connection points

2 Back connection points



Ropes can be tied up around carabines and connected to any neighbor structures (Mooring fingers, piles, cleats…). Upon request, Jet ski can be supplied with long chains, so that concreate anchors can be connected to chains.


4. Rigid Connection to other products (short side)

For other types of connection, special steel structure is needed:


TypeLength, mmWidth, mm Price
Jet Ski connection--ask for price



4.1 Connection to the wood fender on the same level as jet ski

Connect corner bracket (3) by bolts to the wood fender:



4.2 Connection to the wood fender on different level as jet ski

Use additional U bracket (2) to connect to wood fender. Do not make it tight, if you would like to have possibility of vertical movement:



4.3 Standalone Jet ski, connected to the river bed

Use piles instead of steel pipe (1):

Instead of steel pipes, you can use piles, iserted into river bed.

Demonstrated connection was on the short side of port, but it can be connected in the same manner on the long side. We manufacture all connection elements at extra price.




Walkable Fingers

Walkable fingers facilitate getting in and off the boat.

Custom finger

Based on Your ideas we can deliver any finger you want. That means that fingers can be:


  • Custom width (from 400mm to 1200 mm)
  • Custom lengt (from 4m to 13.5 m)
  • Custom max load
  • Fingers able to adjust to water level change


Floats


TypeDimensions a/b/h, mmVolume, l Price
Pontoon float 280L H5701130 / 640 / 570285ask for price
Pontoon float 330L H6501130 / 640 / 645330ask for price


Products


TypeLength, mmWidth, mm Price
Walkable finger wood decking6000-12000650ask for price
Walkable finger metal decking6000-12000640ask for price


Advantages:

  • Hot-dip galvanized steel with ISO certificate
  • Ensure desired height above the water level
  • Easy to conduct maintenance



Mooring Fingers


We can deliver mooring fingers in length: 4, 6, 8, 10, 12 m.

Advantages:

  • Not a subject to corrosion
  • Durable
  • Fast and easy installation


Floats


TypeDimensions a/b/h, mmVolume, l Price
Mooring finger float 100L797 / 297 / 580100ask for price
Mooring finger float 130L797 / 297 / 690130ask for price
Mooring finger float 150L797 / 297 / 790150ask for price


Products


TypeLength, mmWidth, mm Price
U - bracket--ask for price
Mooring Finger4000-12000100ask for price
Mooring Finger with decking4000-12000400ask for price

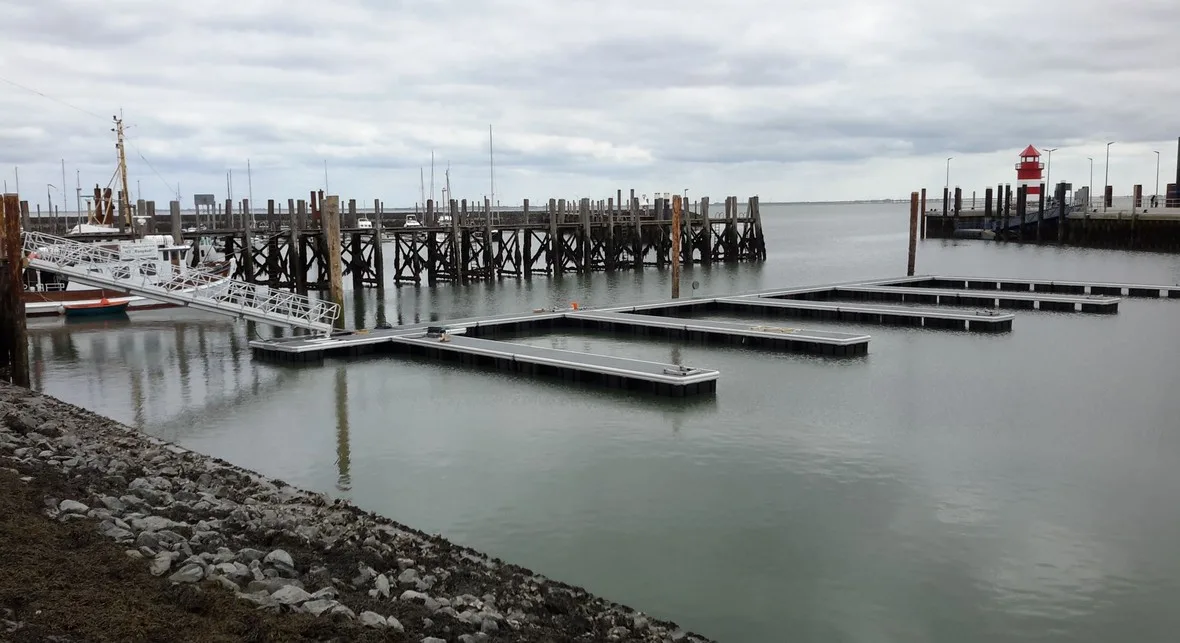

Pontoons

Pontoons, constructed from our floatation modules can withstand loads up to 400 kg per 1 m2.

Advantages compared to concrete:

  • Same Stability
  • Cheaper price
  • Easiness of delivery and mounting



Floats


TypeDimensions a/b/h, mmVolume, l Price

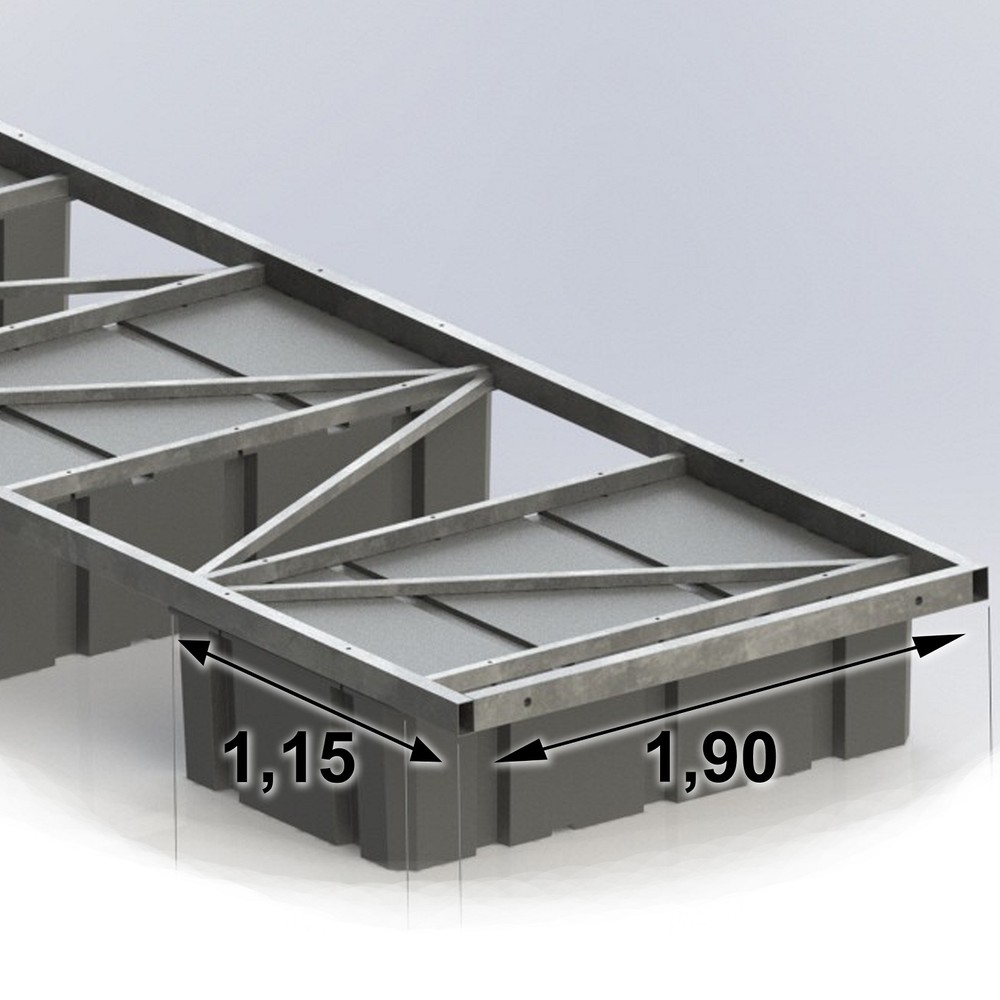

Pontoon float 1000L1900 / 1150 / 5101000ask for price

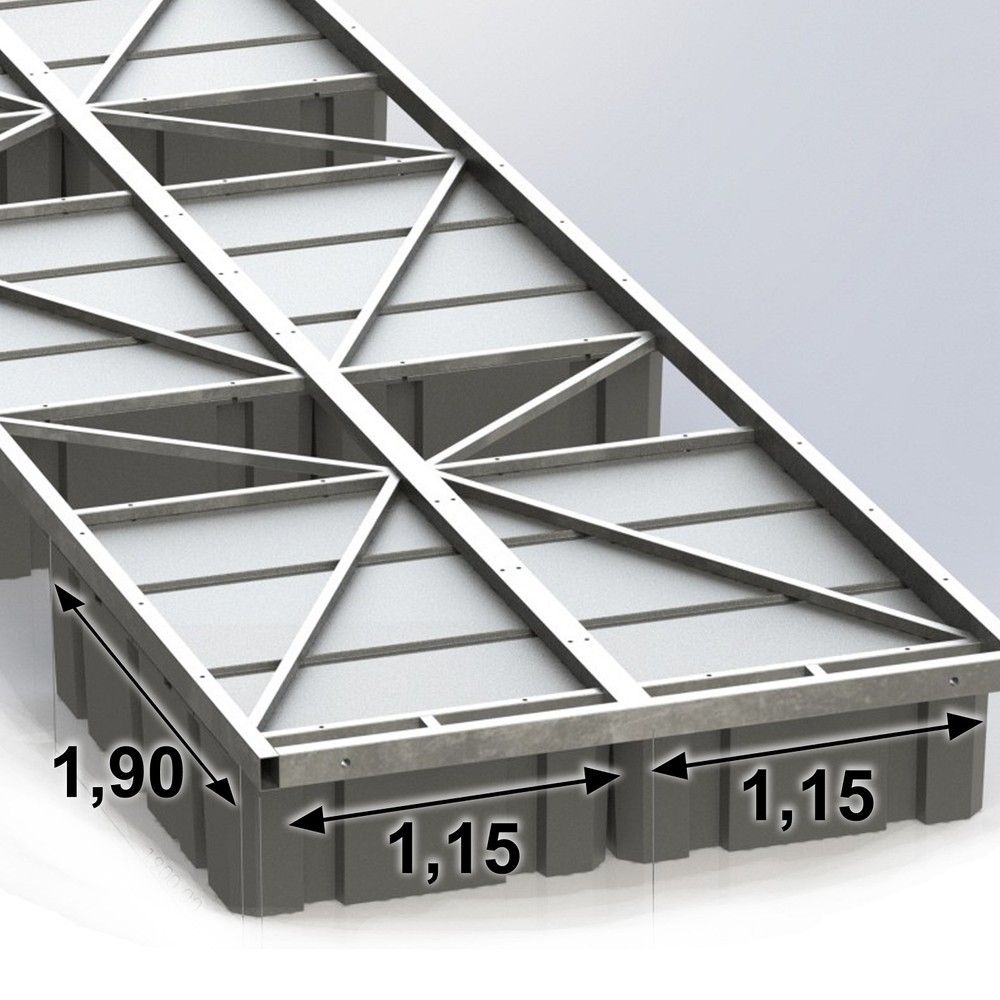

Complete Pontoons





Pontoon 1.25m widePontoon 2m widePontoon 2.4m wide
TypeLength, mmWidth, mm Price
Pontoon 1.25m wide4000-120001250ask for price
Pontoon 2 m wide4000-120002000ask for price
Pontoon 2.4 m wide4000-120002400ask for price

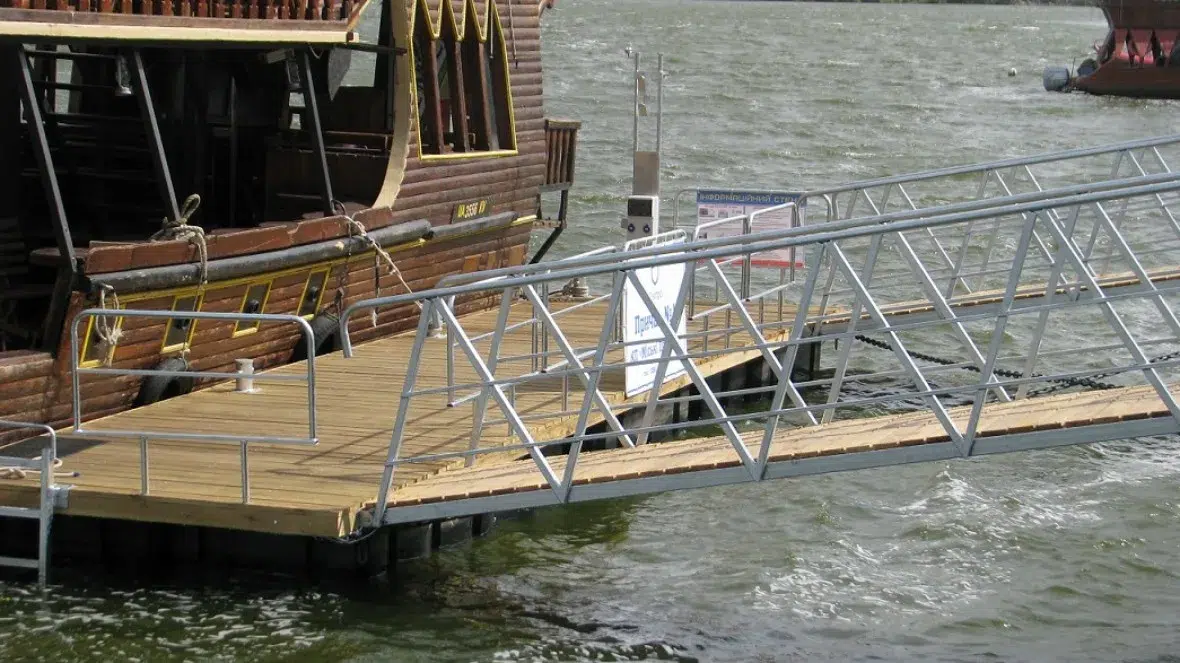

Gangways


TypeLength, mmWidth, mm Price
Gangway 1.2m wide3000-100001200ask for price
Gangway 2m wide6000-120002000ask for price


Other Advantages:

  • Possibility of anchoring
  • Modules can be assembled in custom manner, to provide desired shape of marina
  • The width of profile is selected based on specified max load


Anchoring buoys

Anchoring buoys are the easiest solution to anchor your private boat\yacht.

TypeDimensions a/b/h, mmVolume, l Price
Buoy float 45L410 / 410 / 50048ask for price
Buoy float 75L478 / 478 / 60078ask for price
Buoy float 130L600 / 600 / 750130ask for price
Buoy float 240L760 / 760 / 750290ask for price
Buoy steel galvanized pipe60 / 60 / 1500-ask for price


Pedestal

Pedestals provide boat owners with access to electricity and water supply. Unique feature of our pedestals is white colored lid. When it gets dark, it can function as lighting system.

Pedestals can be used not only in marinas, but also in caravan\camping stations.


PE pedestal boxes


TypeDimensions a/b/h, mmVolume, l Price
Pedestal400 / 440 / 1011ask for price
Round pedestal300 / 300 / 840ask for price


Steel bases


TypeDimensions a/b/h, mmVolume, l Price
Pedestal base360 / 425 / 50ask for price
Round pedestal base275 / 275 / 401ask for price



Advantages of plastic foam filled floating docks:


Contact us:

E-mail: vivamarina@ukrhimplast.com


Order custom floatation module

We are full-cycle rotomolding producers. This means that our supply chain has stages such as computer 3d model design, development of prototype, mass production and quality control.

Today we are interested in extending our range of floatation modules. We welcome our customers to ask for custom products and promise to offer reasonable price-quality-time ratios .

Installation service

To ensure, that our products function properly, right from the start, we offer our installation service. Viva marina installation team consists of qualified workers, supervised by one or two our engineers.

We will come to the site with whole set of required equipment (except small boat and crane machine). Once we are there, we take the whole responsibility for installation of the construction.
