Houseboat
Polystyrene filled floatation modules
Houseboat foam filled floatation modules are light weight floating constructions, produced from high quality polyethylene. They are supposed to be a part of floating platform for houseboat, floating cabin, floating cafe or floating beach.
Our foam filling technology:
- EPS (Expanded Polystyrene) 25
- Module maintains it`s shape and is resistant to mechanical deformations
- Compared to air-filled modules, our module retains floatation properties in case of hole
Floatation modules can stand temperatures in range from -60°C to +60°C and are also resistant to sudden temperature fluctuations. There is no need to deassemble or remove construction in winter period.
Houseboat Products
Floats for light/narrow houseboats
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Float W800 Front | 1200 / 800 / 810 | 425 | ask for price |
| Float W800 Speed Front | 2440 / 800 / 810 | 912 | ask for price |
| Float W800 Middle | 1200 / 800 / 810 | 650 | ask for price |
| Float W800 Back | 1600 / 800 / 810 | 790 | ask for price |
| Float W900 Front | 2440 / 980 / 945 | 1181 | ask for price |
| Float W900 Middle | 1240 / 980 / 945 | 828 | ask for price |
| Float W900 Back | 1650 / 980 / 945 | 1026 | ask for price |
Floats for standard houseboats
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Float W1200 Front | 1200 / 1200 / 940 | 580 | ask for price |
| Float W1200 Middle | 1200 / 1200 / 940 | 1060 | ask for price |
| Float W1200 Back | 1560 / 1200 / 940 | 1220 | ask for price |
| Float W1200 Speed Front | 2440 / 1280 / 945 | 1554 | ask for price |
| Float W1200 Speed Middle | 1240 / 1280 / 945 | 1065 | ask for price |
| Float W1200 Speed Back | 1650 / 1280 / 945 | 1297 | ask for price |
Speed series
We are happy to introduce 2 new families of floats: W900, W1200S features:
- Higher speed of driving
- Perfect driving stability/improved steering
- Same simple mounting method
- Same high quality of EPS and PE
- Extra streamline front
- Kiel
- Redans

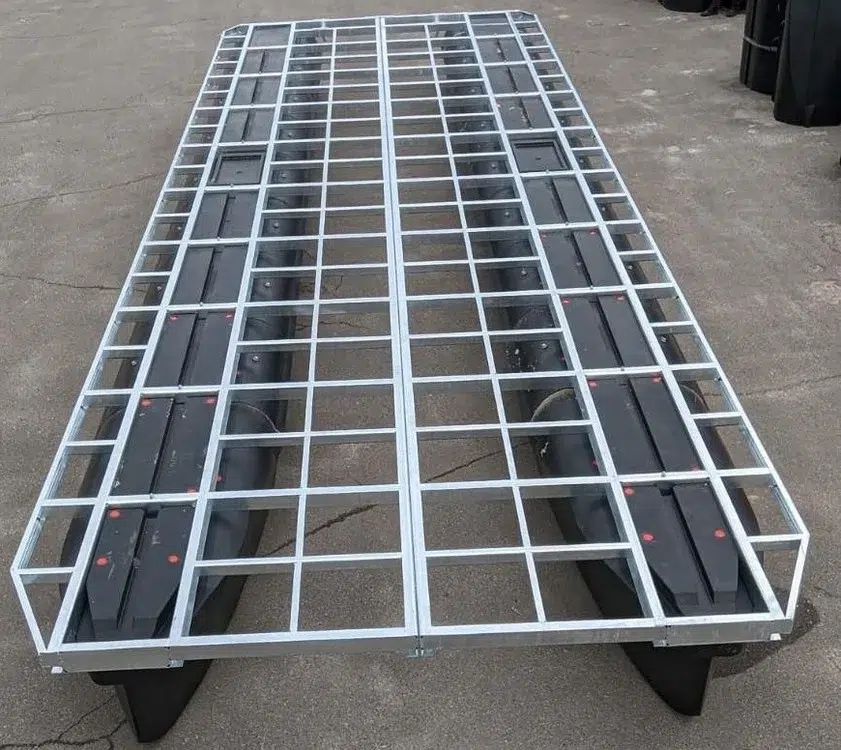

Steel platform
| Type | Length, m | Width, m | Price |
| Catamaran 6m | 6 | custom | ask for price |
| Catamaran 8m | 8 | custom | ask for price |
| Catamaran 10.8m | 10.8 | custom | ask for price |
| Trimaran 14.9m | 14.9 | custom | ask for price |
We can also manufacture custom platform based on dimensions, max load and other requirements.
Floats
Our 1000L float ensures great stability of floating structure and needs simpler steel platform, compared to 1200 float.
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Pontoon float 1000L | 1900 / 1150 / 510 | 1000 | ask for price |
Floating house platform
| Type | Length, m | Width, m | Price |
| Floating house platform | custom | custom | ask for price |
Advantages compared to concrete floating platform:
- Cheaper product price
- Cheaper delivery price (due to transporting disassembled)
- Custom size
- Uneven distribution of load can be corrected by locating more PE floats under heavy areas.
Floats
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Float W800 Front | 1200 / 800 / 810 | 425 | ask for price |
| Float W800 Middle | 1200 / 800 / 810 | 650 | ask for price |
| Float W800 Back | 1600 / 800 / 810 | 790 | ask for price |
Option1: DIY Wood platform
Some customers want to build wood platform themselves. Design of Float W800 allows connection of wood bars. To connect - simply drill the top of the float.
| Type | Length, m | Width, m | Price |
| Wood platform | 4 - 13 | 1.4 - 4 | ask for price |
Option2: Steel platform
| Type | Length, m | Width, m | Price |
| Subframe 12m | 12 | custom | ask for price |
| Catamaran 6m | 6 | custom | ask for price |
| Catamaran 8m | 8 | custom | ask for price |
| Catamaran 10.8m | 10.8 | custom | ask for price |
| Trimaran 14.9m | 14.9 | custom | ask for price |
We can also manufacture custom platform based on dimensions, max load and other requirements.
Option3: DIY Wood platform on Pontoon float 1000L
Floats
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Float W1200 Front | 1200 / 1200 / 940 | 580 | ask for price |
| Float W1200 Middle | 1200 / 1200 / 940 | 1060 | ask for price |
| Float W1200 Back | 1560 / 1200 / 940 | 1220 | ask for price |
Camper platform
We produce custom size steel camper platforms.
| Type | Length, m | Width, m | Price |
| Camper platform 12m | 12 | 4.1 | ask for price |
Why?
- For owners to enjoy camper-life on the water
- For prospective owners to get ultimate experience of travelling the water ways
- Already popular in Germany
Application:
- Campers vans (drive in, drive out)
- Campers trailers (drive in, drive out)
- Camper trailers (mounted)
Wood decking on sides
Movable tow hitch, to adjust to camper length
Camper wheels will be fixed with straps
Camper loading
- Drive in. Camper can drive in from the front of platform. Tow hitch is deinstalled, platform is solidly moored to the pontoon or shore
- Crane loading
Pontoon boat Components
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Float W800 Speed Front | 2440 / 800 / 810 | 912 | ask for price |
| Float W800 Middle | 1200 / 800 / 810 | 650 | ask for price |
| Float W800 Back | 1600 / 800 / 810 | 790 | ask for price |
| Pontoon boat platform with plywood decking | 7200 / 2460 / - | - | llffim_c2l0ZV9tZWRpYS9wcm9kdWN0c19waG90b3MvaG9yaXpvbnRhbF90YW5rcy9nXzMwMDAvR18zMDAwX2ZhY2UucG5n |
| Pontoon boat | / / | 400 uah | |
| Steering console | 686 / 800 / 1115 | - | ask for price |
| Seat | 242 / 1200 / 410 | - | ask for price |
| Corner seat | 717 / 717 / 410 | - | ask for price |
Ready Pontoon boats
| Type | Length, m | Width, m | Price |
| Pontoon boat | 7.2 | 2.4 | 400 uah |
Floats
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Float W800 Front | 1200 / 800 / 810 | 425 | ask for price |
| Float W800 Middle | 1200 / 800 / 810 | 650 | ask for price |
| Float W800 Back | 1600 / 800 / 810 | 790 | ask for price |
Ready Work boat
| Type | Length, m | Width, m | Price |
| Work boat | custom | custom | ask for price |
Floats
| Type | Dimensions a/b/h, mm | Volume, l | Price |
| Float W1200 Speed Front | 2440 / 1280 / 945 | 1554 | ask for price |
| Float W1200 Speed Middle | 1240 / 1280 / 945 | 1065 | ask for price |
| Float W1200 Speed Back | 1650 / 1280 / 945 | 1297 | ask for price |
Equip Houseboat with accessories
Some of our products can be very helpful for the houseboat:
Empty float for water storage | Slide to water |
|---|
All our floats can be supplied empty with reinforced walls for purposes of water storage. If you need to connect a tread, you can screw that in horizontal plane on top of float.

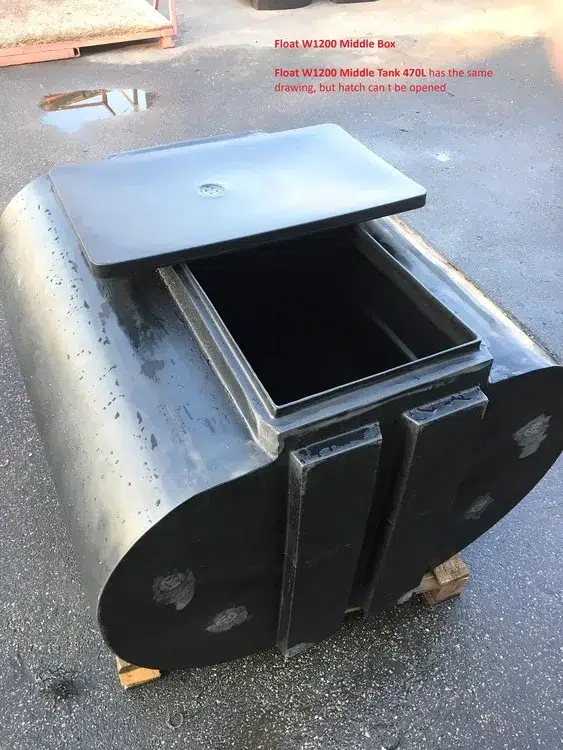

Floats with boxes
Below are standard floats with inserted rotationally molded boxes. Typical applications-storage of: black/grey water, ballast, machinery, diesel (NOT bensin).
Floats with non standard attachments/boxes
Such boxes are produced from PE sheets. Below are some of examples. Per request more custom attachments can be engineered
| Type |
| Float W1200 Front Box+Truster dia 197 |
| Float W1200 Middlle Box+Truster dia 197 |
| Float W800 Speed Front Box+Truster dia 155 |
Not just houseboat: Other projects
Based on our floatation modules and steel platform, it is possible to create custom constructions. Some of examples are below:
Redisigning boats on metal pontoons
Football fields (on water)
Floating houses\cafes
In water entertainments
In case metal floats have aged, it is possible to renew floatation properties, by adding 3d row of plastic floatation modules.
